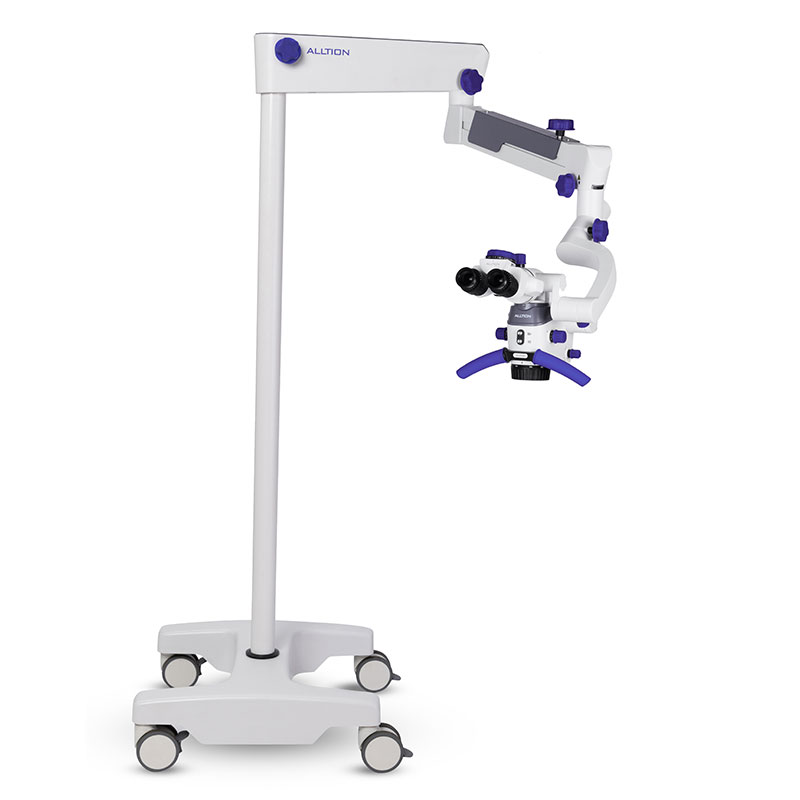

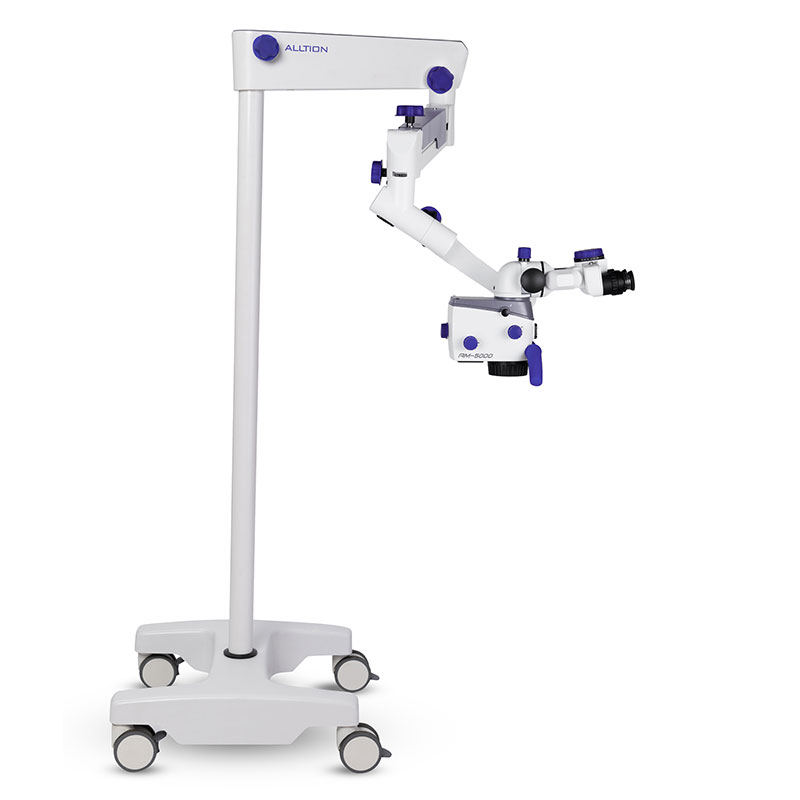

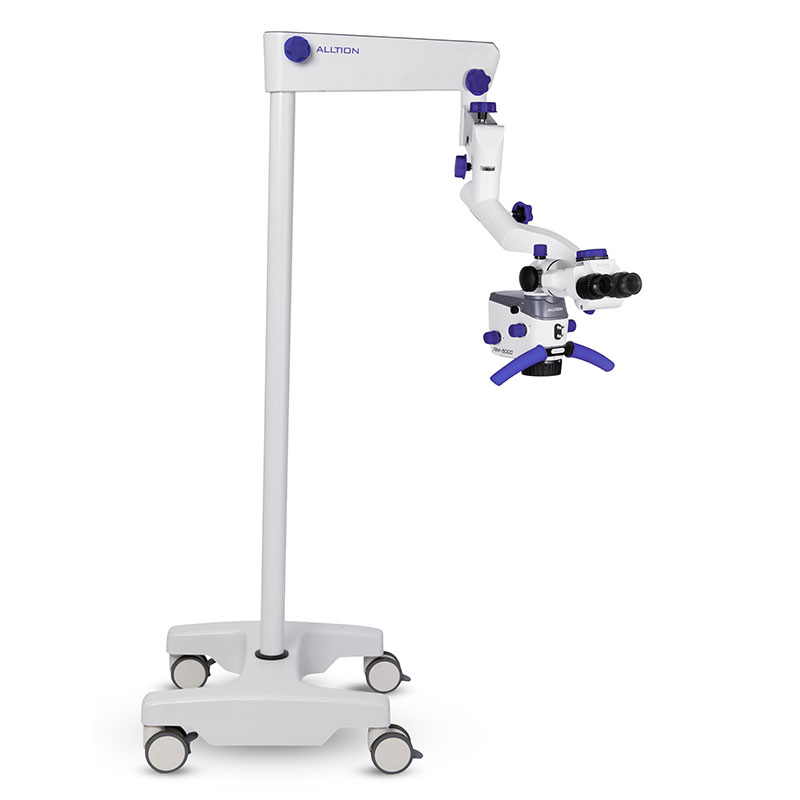

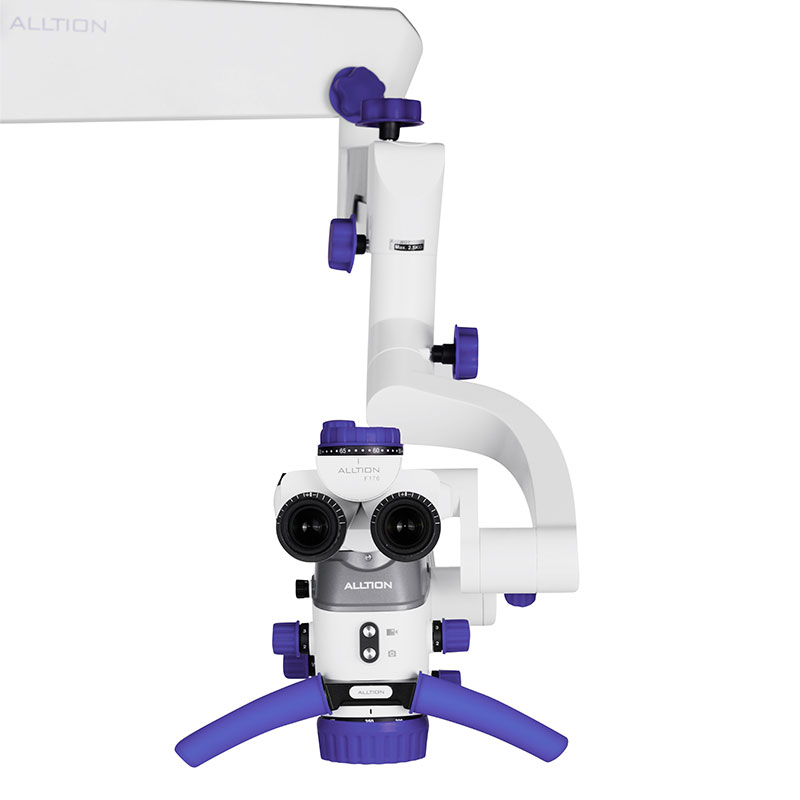

AM-5000 Dental Microscope

Elevating Enhanced Dentistry

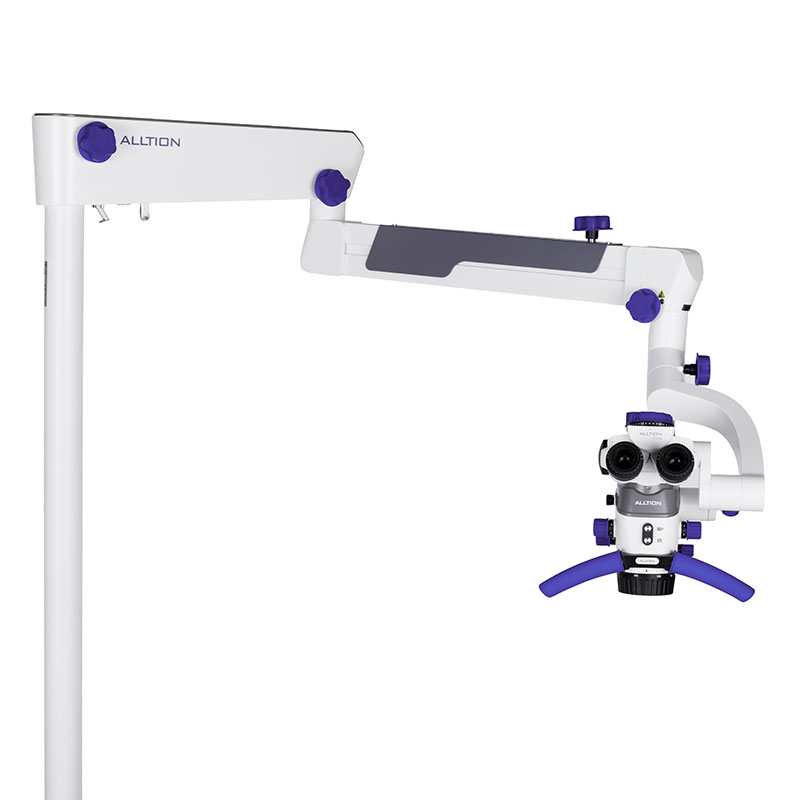

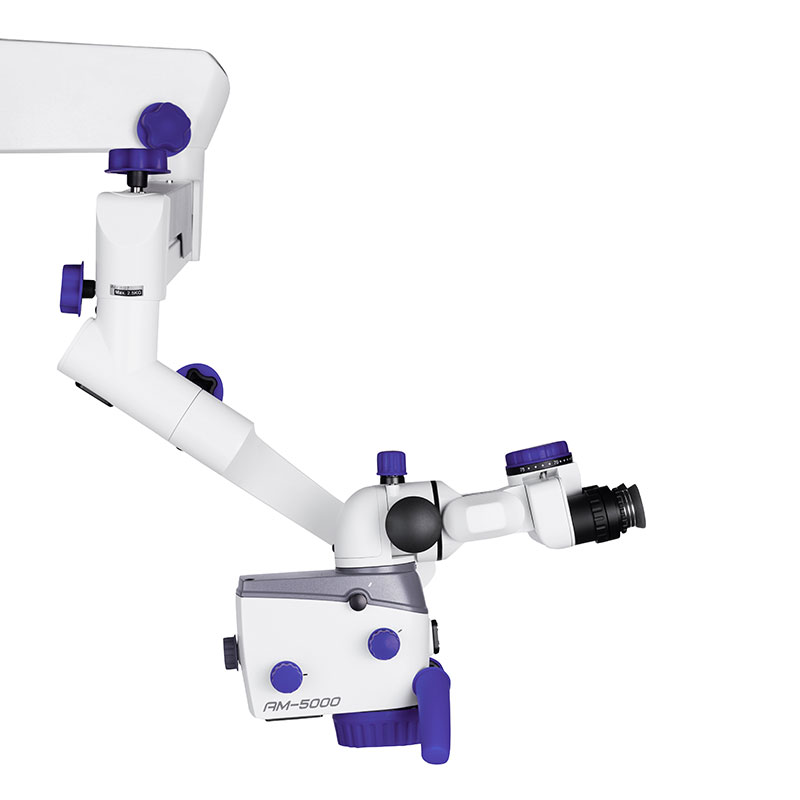

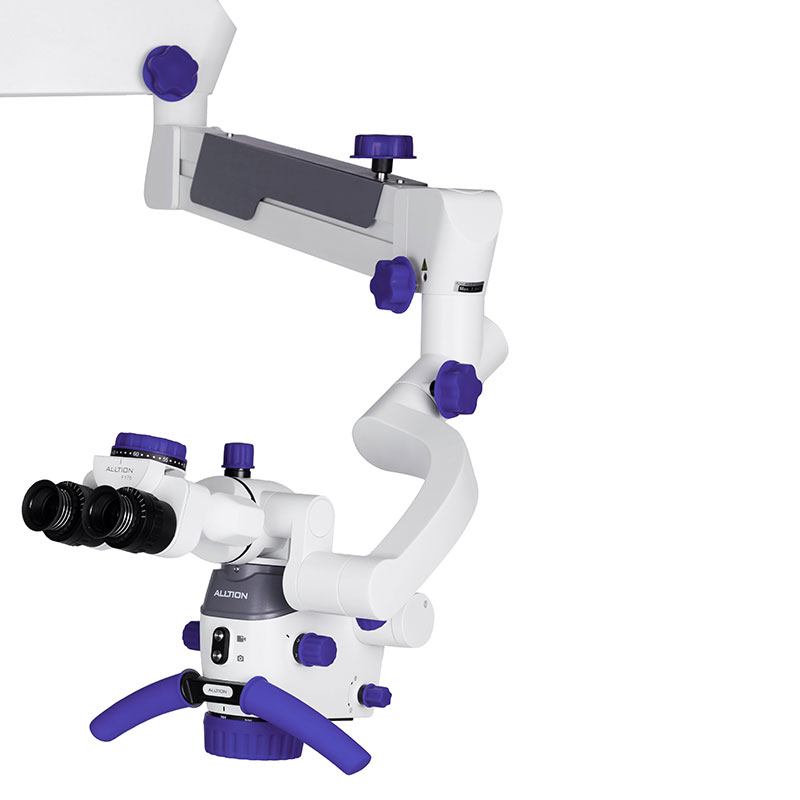

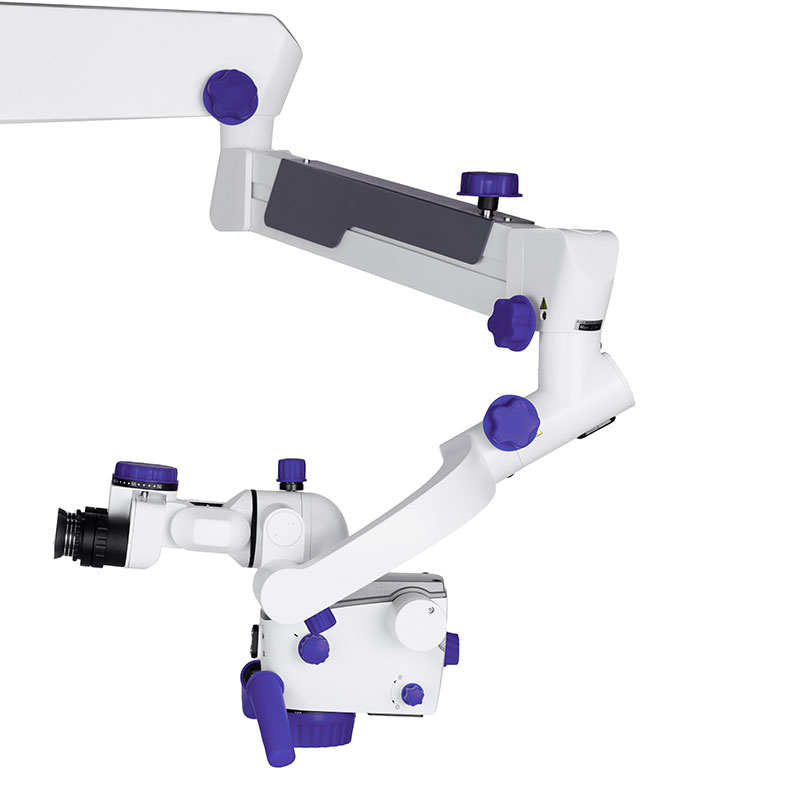

The improved C-type connecting arm, designed specifically for dentistry, is less obtrusive than standard operating microscopes.
The FORA pendulum device allows the operator to maintain a comfortable upright viewing posture regardless of the viewing angle. When angling the optical head, the binocular remains level.
An accommodating 198-455mm variable objective lens is provided standard, providing a large field of view and high level of magnification. The operator can easily adjust the variable objective for a clear and detailed view at a focal distance that is comfortable for any user regardless of height.

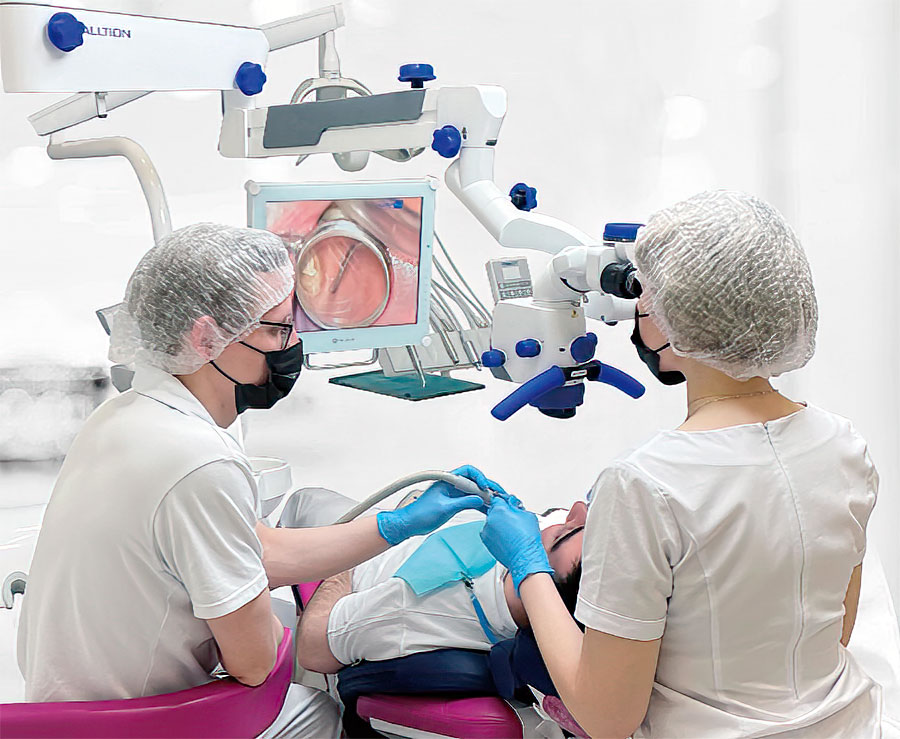

An integrated 4K camera system provides hi-definition images and video transmission. Procedures may be observed in real time and are easily shared with patients and staff. The camera allows for recording and image capture, making it easier to conduct post-operative reviews and enhance doctor-patient communication.

Interpupillary distance adjustment

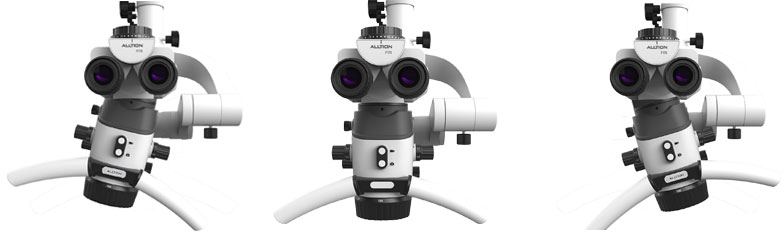

0-180° Inclinable binocular

Depth of Field Adjustment

AM-5000 includes a unique perspective system to enhance the depth of field. This adjustment enables the operator to observe details of different depths more clearly.

Live Feed Freeze

Image/Video Capture

6-Step magnification

Fluorescence Mode

Light Intensity Adjustment

198-455mm Variable objective lens

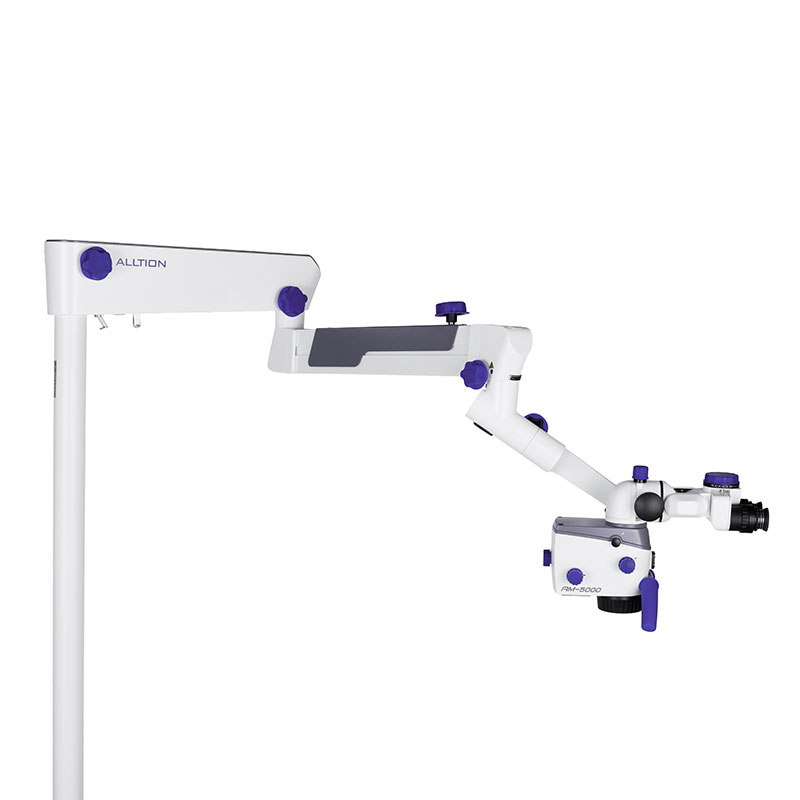

Healthy Working Posture

Integrated Flexible Optics Rotating Assembly (FORA)

FORA includes a pendulum rotation device allowing the optical head to be angled left or right 23°.
FORA enables the operator to maintain a comfortable upright viewing posture regardless of the viewing angle. When angling the optical head, the binocular remains level.
This design not only improves the efficiency and accuracy of the operation, but reduces fatigue and safeguards occupational health.

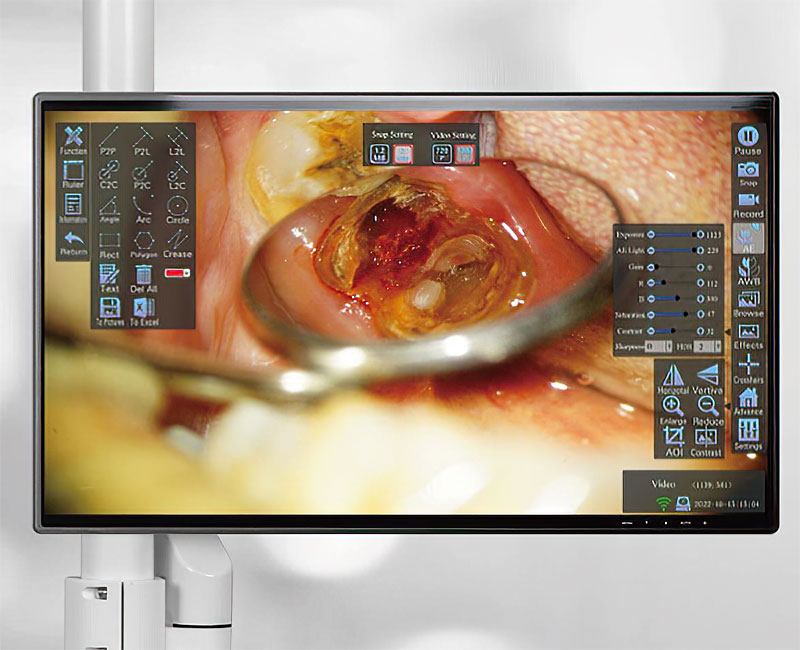

Built-in 4K Camera System

Photograph ⦿ Video Recording ⦿ Freeze ⦿ USB Storage ⦿ Double HDMI Channel Output ⦿ Playback ⦿ Contrasting Photo-Photo, Photo-Live Images ⦿ Mouse Operated ⦿ Built-In WIFI Function ⦿ Wireless Foot Control

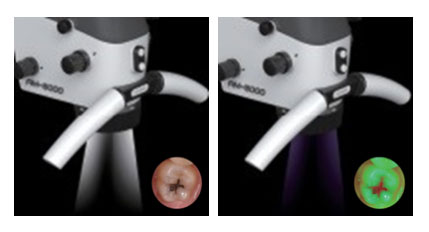

Fluorescence and White Illumination

The AM-5000 offers two modes of illumination: white and fluorescence. When fluorescence mode is activated, the anti-violet shield is engaged to safeguard operators’ eyes. This fluorescence mode assists in discerning between natural hard tooth tissue and dental composite resin material. This not only accelerates the identification of affected areas but also conserves valuable chair time during the excavation process.

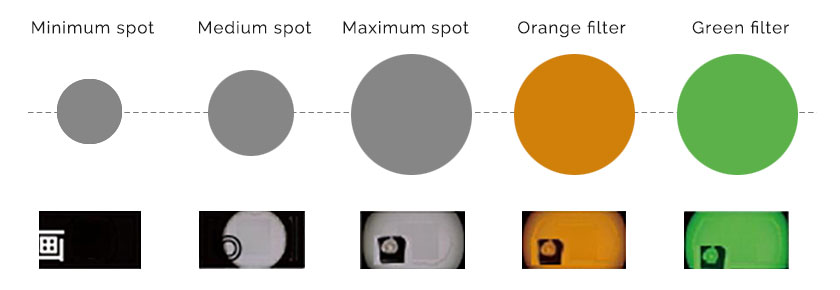

Illumination Mode

5 Illumination modes allow the operator to adjust the light source to suit their needs.

Light beam size can be adjusted between minimum, medium, and maximum.
Orange filter prevents premature curing of resin material.
Green filter enhances visualization of blood vessels

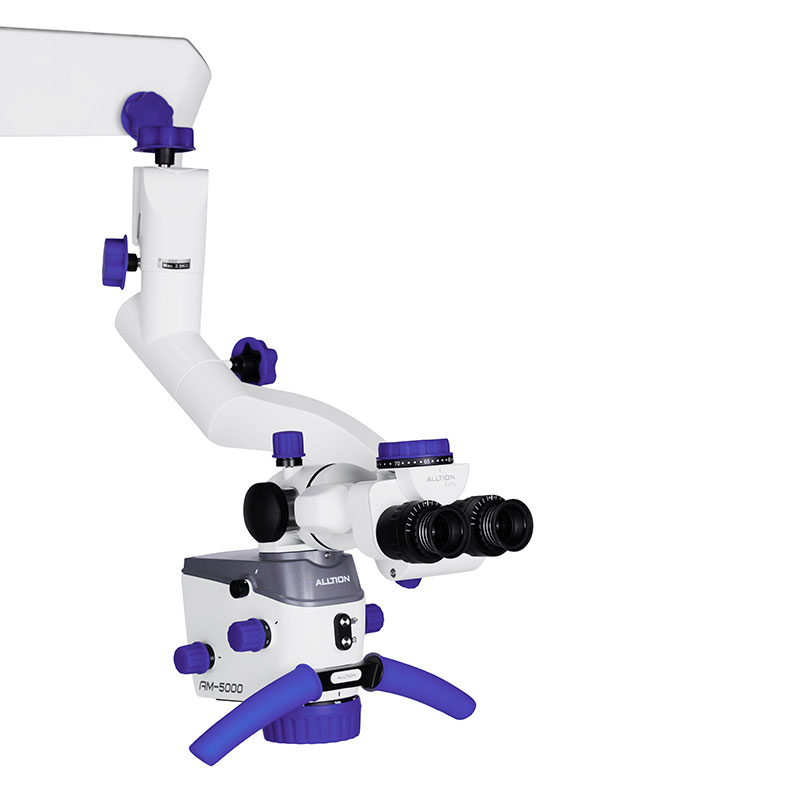

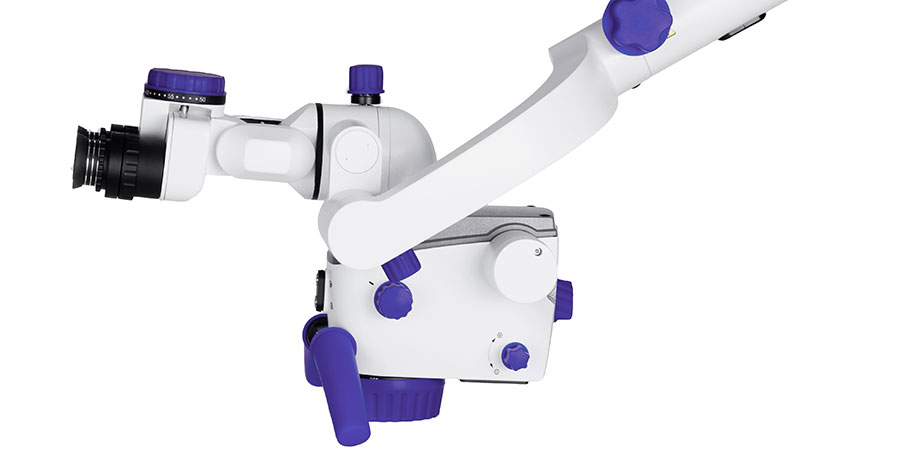

Integrated 90° Binocular Extender

The Integrated 90° Binocular Extender increases the horizontal distance between the operators eyes and microscope head improving the operator’s ability to work in a comfortable, upright position without crowding the patient.

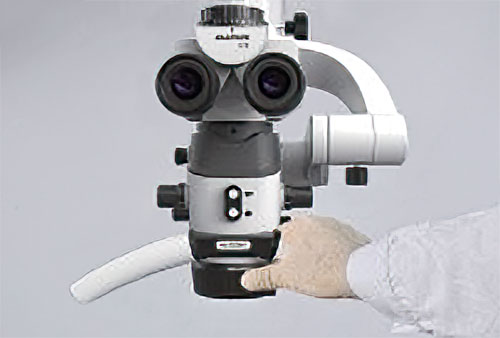

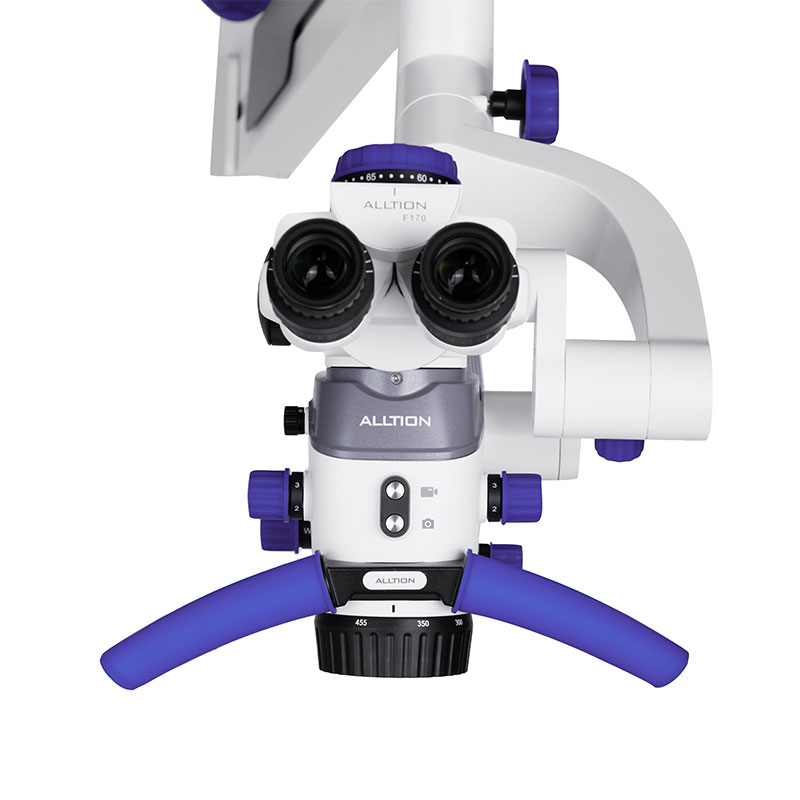

Single-Handed Operation

Several functions including image capture, video freeze, and focal distance are easily controlled without changing hand position or altering your ideal working posture.

Elevating Enhanced Dentistry

Transform your dental procedures with the Alltion AM-5000 dental microscope. Crafted with cutting-edge technology, this instrument sets a new standard in precision and efficiency. Boasting an extensive magnification range, advanced LED illumination, and an integrated camera system, the AM-5000 delivers unparalleled clarity and documentation capabilities. Its robust articulating arm provides precise maneuverability, while the ergonomic design ensures comfort during extended use. Elevate your dental practice to unprecedented levels of excellence with the AM-5000 – where innovation meets precision.

	OVERVIEW
6 Step Magnification	Magnification range: 1.4x–22.8x
Objective Lens	Variable Focal Distance: 198-455mm
Flexible Optics Rotating Assembly (FORA)	FORA allows the operator to maintain a comfortable upright viewing posture regardless of the viewing angle. When angling the optical head, the binocular remains level.
One-Handed Operation	Without changing positions, control all microscope functions with one hand. Thumb operated controls including focal distance adjustment and image capture are located within reach on the optical head.
Inclinable Binocular	All Alltion dental microscopes come standard with a 0-180° inclinable binocular head allowing the microscope to conform to the operator’s most comfortable, ergonomic position.
4K Integrated Camera	The built-in 4K camera system provides hi-definition images and video transmission. Procedures may be observed in real time and are easily shared with patients and staff. The camera allows for recording and image capture, making it easier to conduct post-operative reviews and enhance doctor-patient communication.

	BUILT-IN 4K CAMERA SPECIFICATIONS
Sensor	1/1.8 Inch Sony high-sensitivity and low-noise CMOS
Output Interference	HDMI, USB 2.0
Video Resolution	4K (3840×2160) 60FPS (16:9) / MP4 Format
Camera Split Ratio	2:8
Video Resolution	4K ( 3840 x 2160) 60FPS (16:9) / MP4 Format
Picture Resolution	8M (3840 x 2160), 2M (1920 x 1080) / JPG Format
Basic Functions	Screen Freeze, Image Capture, Video Record, Automatic Exposure, White Balance, Play Back and Cross Curve, Sound Recording
Image Effect	Exposure, AE Light, Gain, Red Gain, Blue Gain, Saturation, Contrast, Sharpness, HDR, Detail, BLC
System Settings	Automatic/Autonomous Naming, Show/Hide Time, Show/Hide Logo, Image Resolution, Naming Setting, System Update, Restore Default, Version Information

	OPTICAL PARAMETERS
Objective Lens	F=198–455mm
	F=198mm		F=300mm		F=455mm
Magnification Charge	Total Magnification	Field of View (mm)	Total Magnification	Field of View (mm)	Total Magnification	Field of View (mm)
0.4	3.0x	71.8	2.3x	96.1	1.7x	132.0
0.6	4.6x	47.9	3.4x	64.1	2.5x	88.0
1	7.6x	28.7	5.7x	38.5	4.1x	52.8
1.6	12.2x	18.0	9.1x	24.0	6.6x	33.0
2.5	19.0x	11.5	14.2x	15.4	10.4x	21.1
