A Modular Masterpiece



  • Wide magnification range (2.5x to 20x).
  • Binocular head for stereoscopic view and depth perception.
  • LED illumination with coaxial lighting.
  • Articulating arm for optimal positioning.
  • Hands-free operation available.
  • Assistant microscope/viewing port available.
  • Built-in filters for enhanced contrast.
  • Compact design: easily fits for dental operatories.

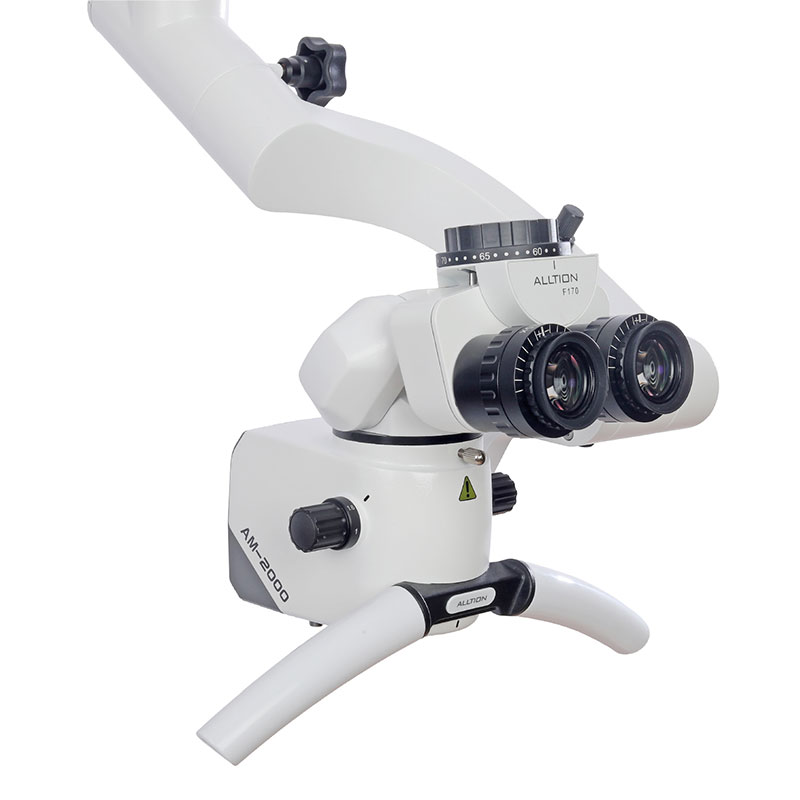

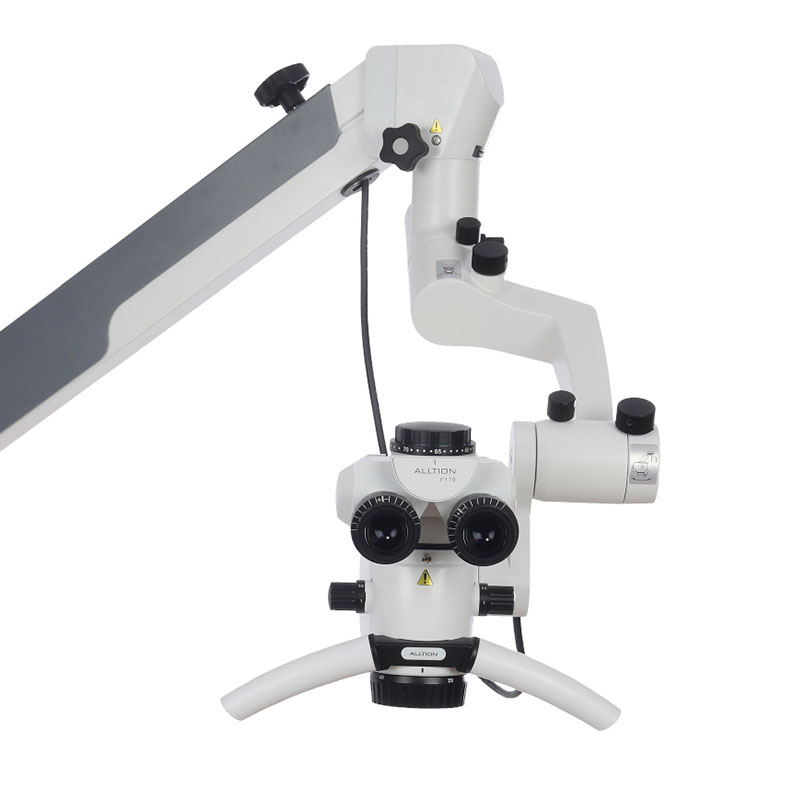

AM-2000 Features
250-430mm Variable objective lens
Manual 5-step magnification
Light Intensity Adjustment
0-180° Inclinable Binocular
Interpupillary distance adjustment

Integrated DC Power Supply

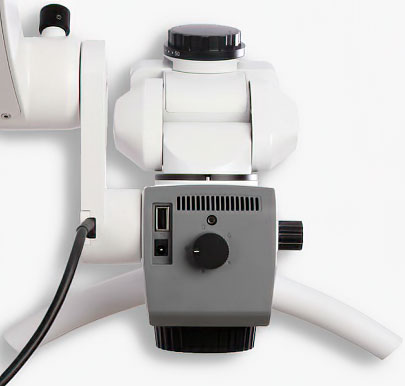

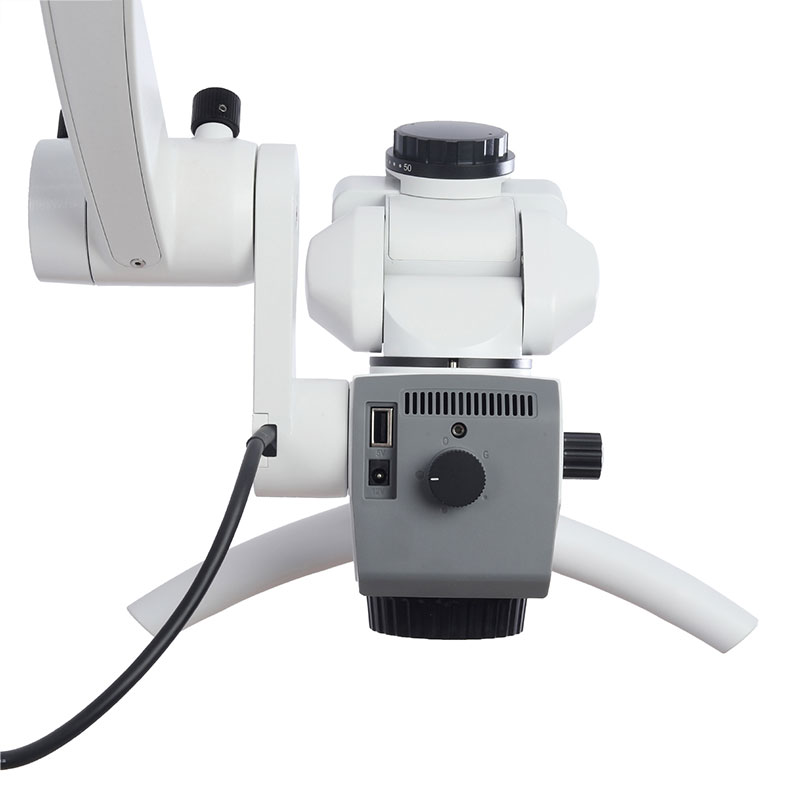

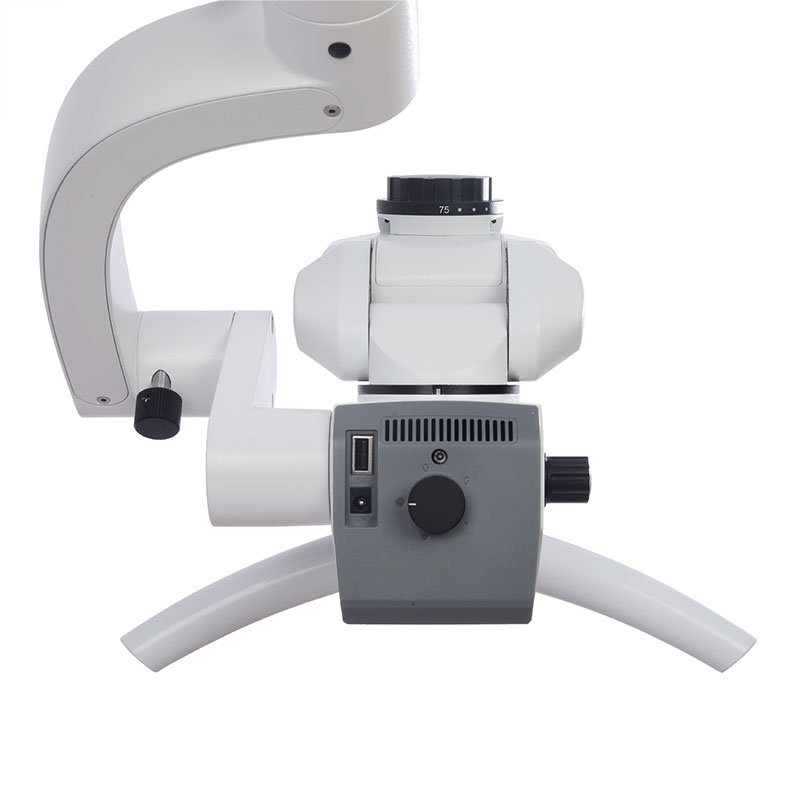

The Forward face of the microscope head is equipped with both 5V and 12V DC power supply. may be used to charge exterior cameras or cellphones, eliminating concerns about the battery life of external electronics.

AM-2000 DC Power Supply

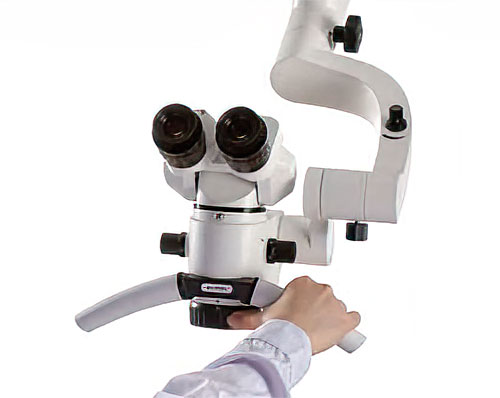

Single-Handed Operation

The focal distance is easily adjusted by controlling the variable objective lens without repositioning hands.

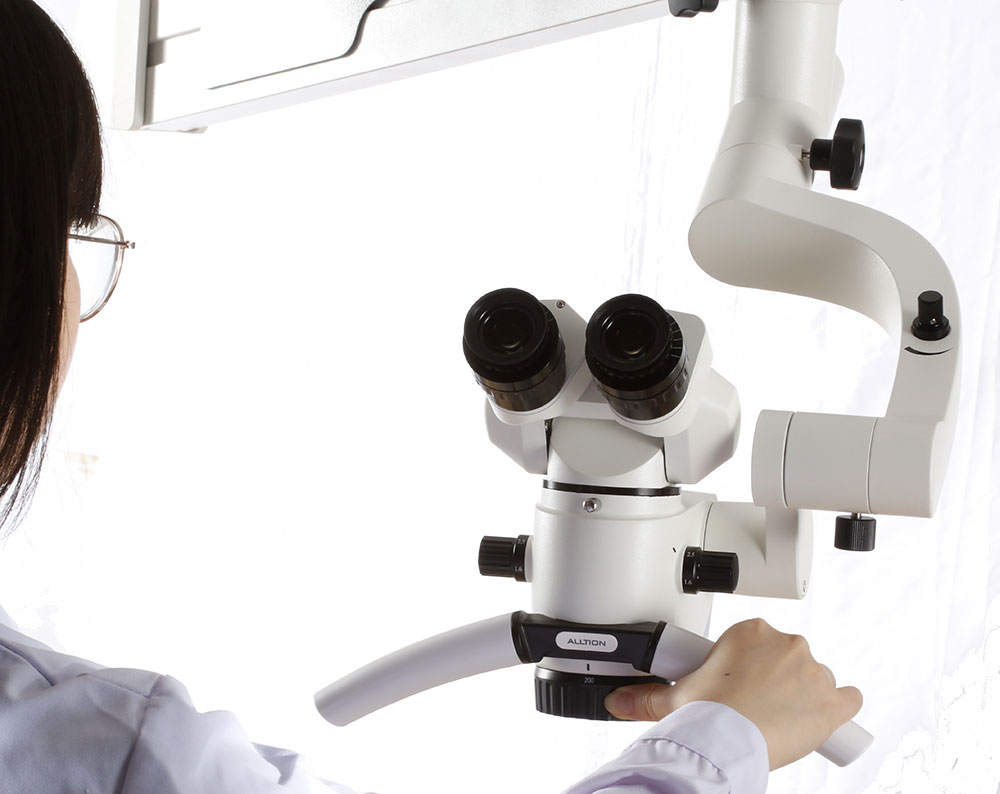

AM-2000 single-handed operation

Illumination Mode

AM-2500 filters

5 Illumination modes allow the operator to adjust the light source to suit their needs.

  • Light beam size can be adjusted between minimum, medium, and maximum.
  • Orange filter prevents premature curing of resin material.
  • Green filter enhances visualization of blood vessels

A Modular Masterpiece

As our base model, the AM2000 offers all of the most important features needed at a base price that other manufacturers can’t match without endless “add-ons.”

  • The AM-2000 is our most upgradeable dental microscope with optional accessories including cameras, beam splitter, laser filter, and more. The convenient modular design makes the AM-2000 the perfect entry point to microscope enhanced dentistry. Alltion’s wide variety of accessories allows your dental microscope to adapt and evolve to your needs.
  • An accommodating 250-430mm variable objective lens is provided standard, facilitating a large field of view and high level of magnification. The operator can easily adjust the variable objective for a clear and detailed view at a focal distance that is comfortable for any user regardless of height.
AM-2000 Dental Microscope in use
OVERVIEW
5 Step Magnification Manual 5 step magnification, 0.4, 0.6, 1.0, 1.6, 2.5, magnification range: 3.4x21x @ 250mm
Objective Lens Variable Focal Distance: 250-430mm
One-Handed Operation The focal distance is easily adjusted by controlling the variable objective lens without repositioning hands.
Inclinable Binocular All Alltion dental microscopes come standard with a 0-180° inclinable binocular
head allowing the microscope to conform to the operator’s most comfortable, ergonomic position. Adjustable interpupillary distance: 50–75mm
Eyepiece 12.5x/18mm
LED Illumination Max > 50000 lux @ 300mm
LED Color temperature 5500k, color rendering index 85%
Illumination Mode Orange filter, green filter, large/medium/small beam
Electrical System Input: AC 100–240V
Output: DC12V/3A
Camera Optional 4k or 1080P

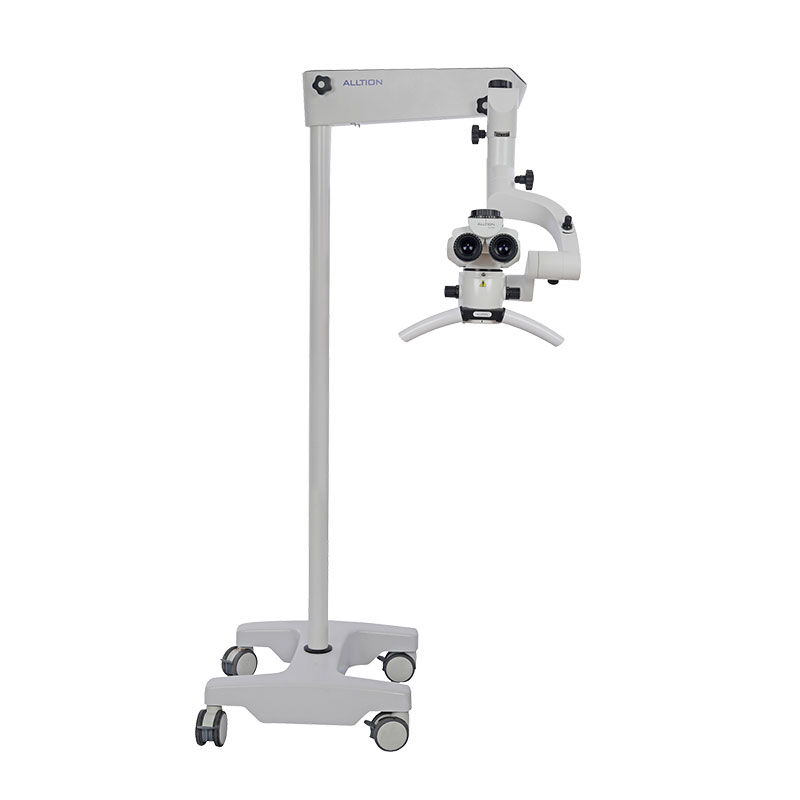

Weight 90kg/198lbs (with floor mobile stand)
 OPTIONAL 4K CAMERA SPECIFICATIONS
Sensor 1/1.8 Inch Sony high-sensitivity and low-noise CMOS
Output Interference HDMI 2.0
Resolution 4K 3840×2160 (16:9)
Storage USB
Picture: JPG; Video: MP4
Camera Split Ratio 2:8
Video Resolution 4K
Picture Resolution 8MP (3840×2160)
Basic Functions Screen Freeze, Image Capture, Video Recording, automatic exposure, white balance, play back
Image Effect Exposure, AE light, gain, red gain, blue gain, saturation, contrast ratio, sharpness, HDR
System Settings Horizontal Flip, Vertical flip, language, show/hide time, image resolution, system update, restore default
OPTICAL PARAMETERS
Objective Lens WD=250–430mm
F=250mm F=310mm F=400mm
Magnification Charge Total Magnification Field of View (mm) Total Magnification Field of View (mm) Total Magnification Field of View (mm)
0.4 2.8x 78.2 2.5x 88.8 2.1x 102.9
0.6 4.2x 52.1 3.7x 59.2 3.2x 68.6
1 7.0x 31.3 6.2x 35.5 5.3x 41.2
1.6 11.2x 19.5 9.8x 22.2 8.5x 25.7
2.5 17.5x 12.5 15.4x 14.2 13.3x 16.5

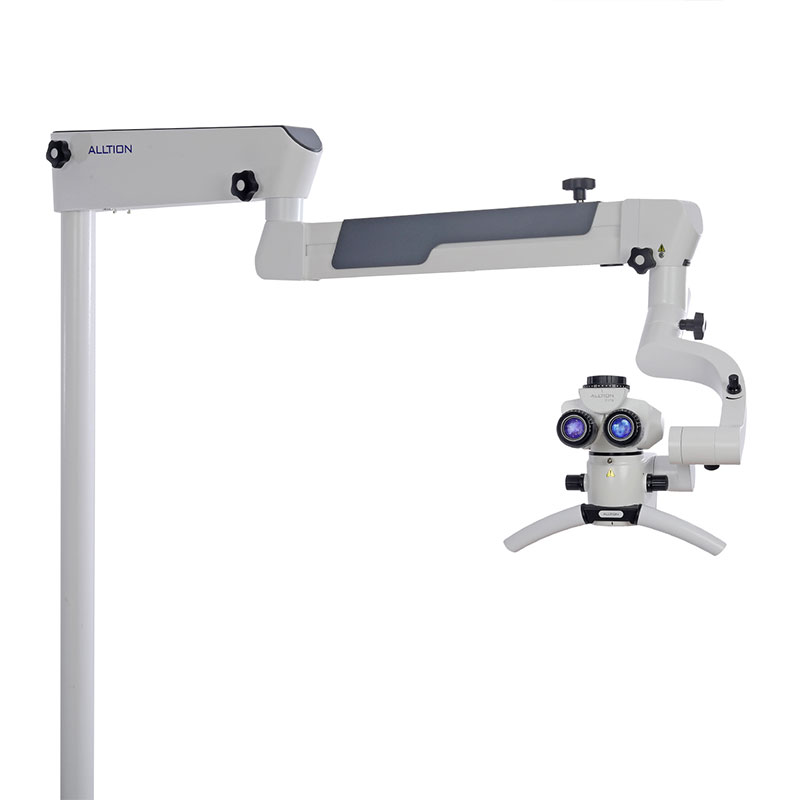

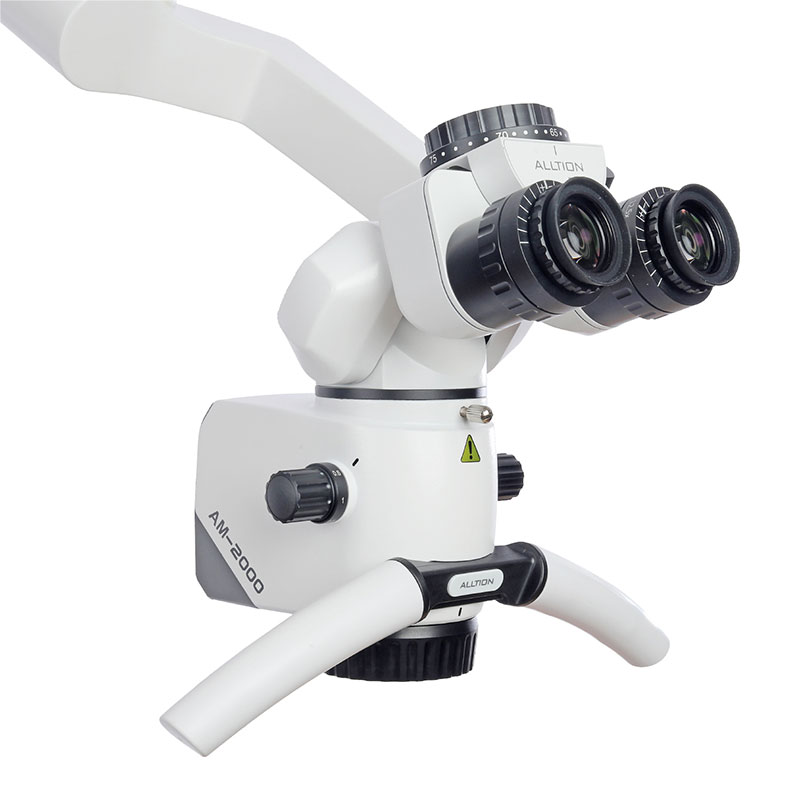

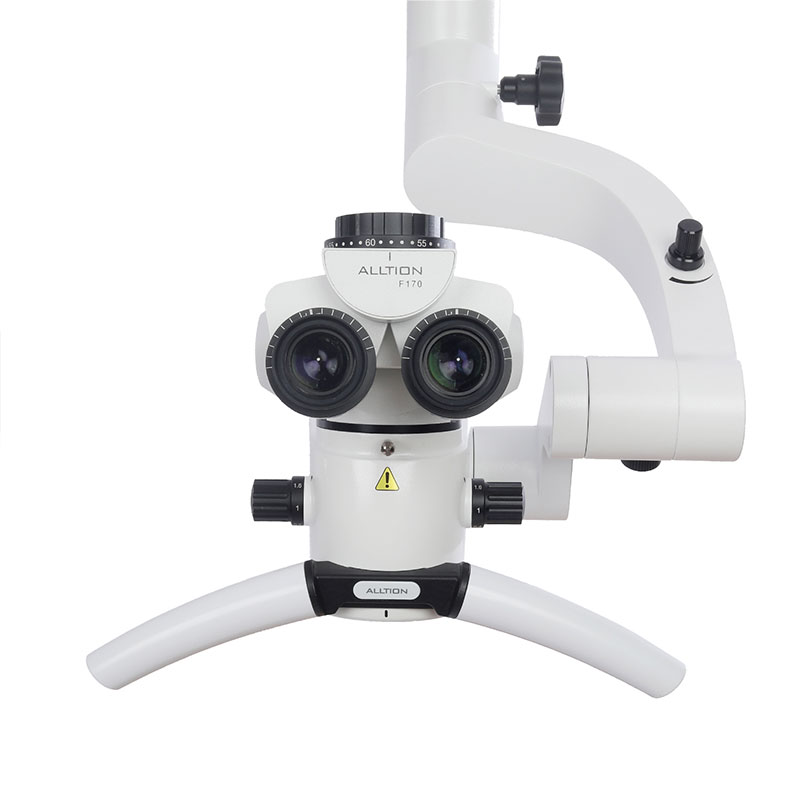

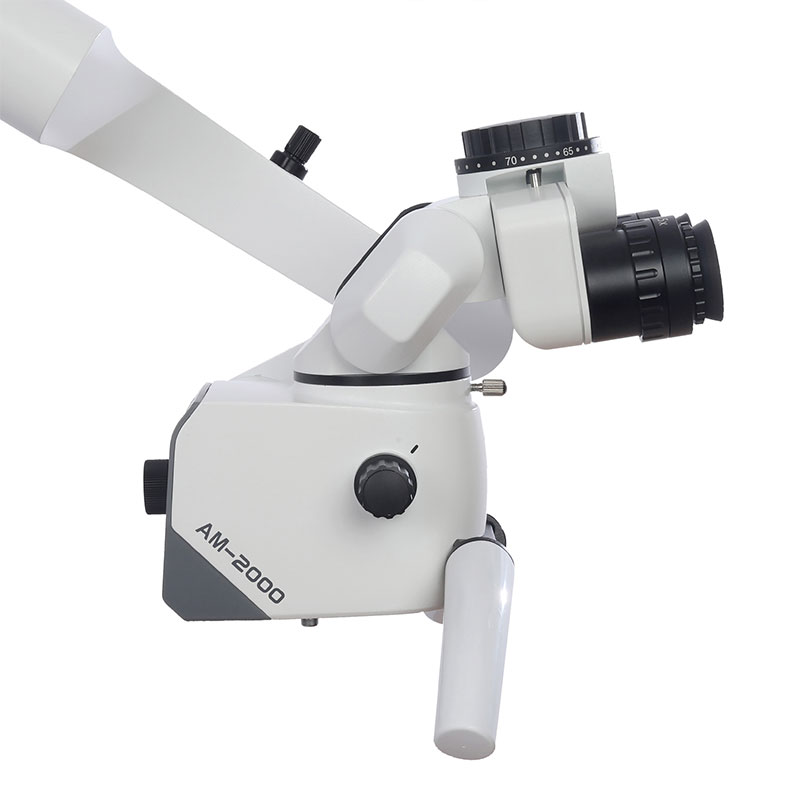

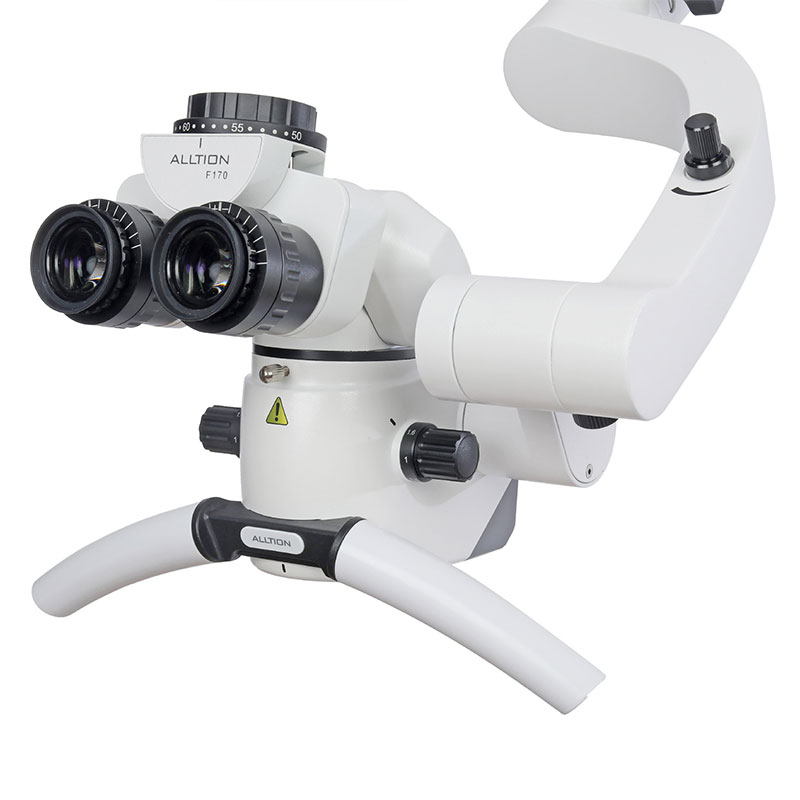

AM-2000 Dental Microscope
